Kadee O 743 Type E Short Centerset Metal Couplers w/Plastic Short Gearboxes
SKU 261699
$14.99
Sold out
Sold out
Save this product for later
Kadee O 743 Type E Short Centerset Metal Couplers w/Plastic Short Gearboxes
Product Details
UPC: 765484007432
Brand: Kadee

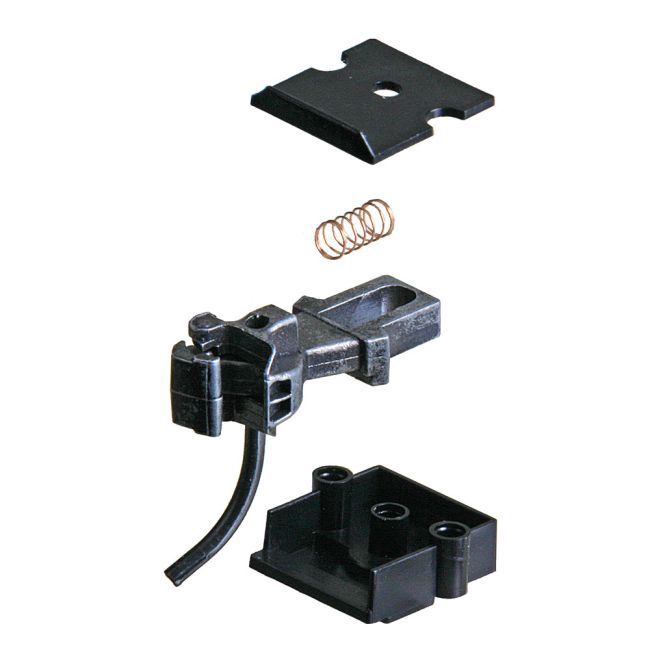

Kadee O 743 Type E Short Centerset Metal Couplers w/Plastic Short Gearboxes
#743 Type E Short Centerset Metal Couplers with Plastic Short Gearboxes - Black - O Scale
 |
 |
This industry leading coupler features New Generation AAR Type "E" "Prototype" Head Short Centerset Metal Couplers, and #850 O Scale centering spring and comes complete with Short Plastic Gearboxes and lids. The #743 Metal Coupler may be mounted with the included Short Plastic Gearbox (#806 type).
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
Two pair per package
UPC: 765484007432
Made in the U.S.A.
O-Scale
New Generation AAR Type "E" "Prototype" Head:
- Simple Drop in Design
- Trouble Free Operation
- Hidden Knuckle Spring
- AAR Type "E" Coupler Style
- Compatible with Kadee® O-Scale Couplers
- World-Renowned Quality & Performance
- They just Last & Last & Last...
Package Includes:
- (4) Each #743 Type "E" "Prototype" Metal Couplers - Short Centerset Shank
- (4) Each Short Plastic Gearboxes & lids (#806 type)
- (5) Each #850 O Scale Centering Springs
#743 Metal Coupler Features:
| Material | - Metal |
| Shank Length | - Short (47/64") (Knuckle pulling face to center hole of Draft Gearbox) |
| Coupler Offset | - Centerset |
| Centering Spring | - #850 O Scale Centering Springs |
| Head | - New Generation AAR Type "E" "Prototype" Head |
| Works In Place of | - #806 O Scale Short Centerset Shank Couplers |
| Works With | - #806 type Draft Gearboxes |
Plastic Short Draft Gearboxes & Lids Features (#806 type):
| Material | - Plastic |
| Dimensions | - 17/32"L x 1/2"W x 7/32"H |
| Works With | - #743, & #806 Couplers |
Mounting Specifications:
| Mounting Height | - 25/32" |
| Centerline | - 1 1/16" |
| Trip Pin Height | - 1/16" |
| Mounting Holes | - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |
Recommended Tools:
- #812 O Scale Coupler Height Gauge
- #231 Greas-em Dry Graphite Lubricant
- #237 Coupler Trip Pin Pliers
- #240 Double Headed Pin Vise
- #241 Dual Tool Manual Uncoupling Tool and Spring Pick
- #246 Tap (2-56) and Drills (#50 and #43)
