Kadee HO 18 Scale NEM 362 European-Style Couplers-Mdm
SKU 18
$10.99
Sold out
Sold out
Save this product for later
Kadee HO 18 Scale NEM 362 European-Style Couplers-Mdm
Product Details
UPC: 765484000181
Brand: Kadee

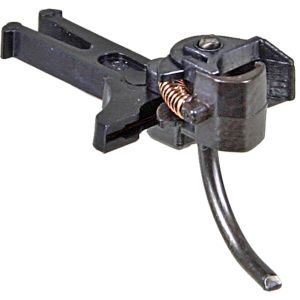

#18 HO Scale NEM 362 European-Style Couplers - Medium (8.63mm , .340 inch , 11/32")
 |
 |
This industry leading coupler features an NEM 362 European Style Coupler. The #18 Magne-Matic® NEM 362 European Style Coupler that is mounted in the HO-Scale NEM 362 draft gear box pocket.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
Refer to our helpful Coupler Conversion Charts to determine the appropriate coupler to use on your model.
Two pair per package
(w/o Draft Gear Boxes)
UPC: 765484000181
Made in the U.S.A.
HO-Scale
Package Includes:
- (2) Pair #18 Couplers (Aassembled) - Medium Underset
- (2) #622 Knuckle Springs
#18 Coupler Features:
| Material | - Metal Knuckle, Plastic Coupler Swallow-tail Shank |
| Shank Length | - Medium (8.63mm , .340 inch , 11/32") (pulling face to the dovetail shoulder) |
| Coupler Offset | - Underset Shank |
| Knuckle Spring | - #622 |
| Centering System | - NEM European Style Coupler |
| Head | - Standard Head |
Mounting Specifications:
| Shank Length | - 8.5mm , .334" |
| Coupler Centerline Height | - 9.9mm , .390" |
| Trip Pin Height | - .08mm , .031" |
Recommended Tools:
